Intermittent bonded ribbon production line explained
Equipment for producing rollable formats in optical-fiber manufacturing is provided by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Buyers can compare the capacity of this setup against their intended product range because it is designed for 12- and 16-fiber ribbons. Its split-type construction may also affect factory space and installation requirements.
Intermittent Bonded Ribbon Intermittent Bonded Ribbon SZ Stranding Line

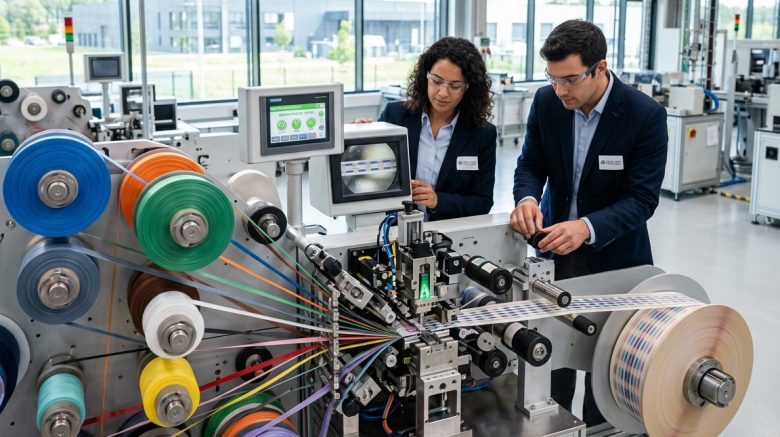

The stated construction speed for this particular production line is 600 m/min. Fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up are integrated in the process. When assessing suitability, the entire process matters rather than speed alone.
Factory utilities, reel requirements, available floor space, and installation conditions should be assessed before purchase. Ask the supplier for its documentation package and check the system’s suitability for your cable design and operating requirements. Addressing these details in advance may limit setup delays and support a smoother start.
Key Takeaways
- Designed for rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Uses a split-type construction.
- Curing, monitoring, pulling, and take-up stages are included.
- Check utilities, reels, installation needs, and supplier documents before buying.

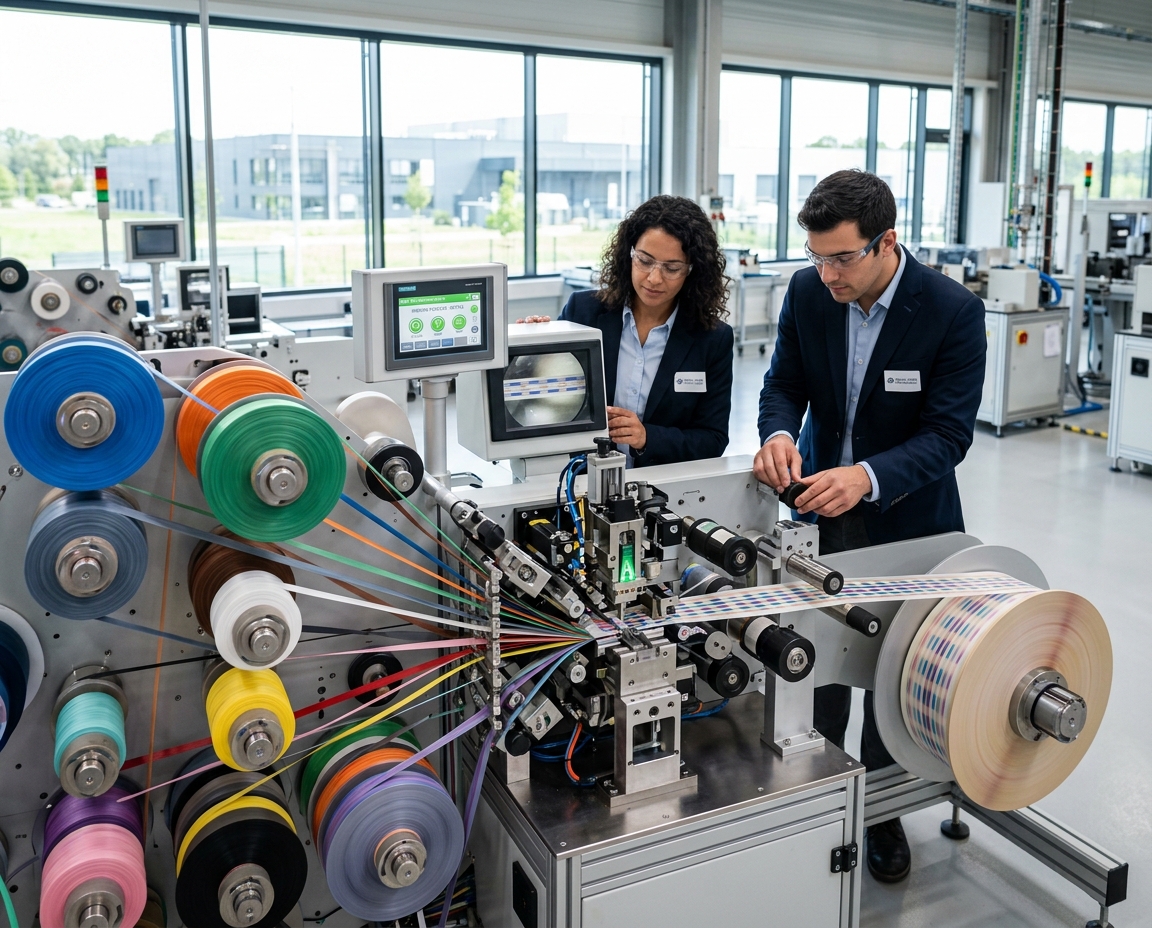

Intermittent Bonded Ribbon Production Line
Explore The Intermittent Bonded Ribbon Production Line
Three mold groups help shape rollable IBR formats by positioning fibers for small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping produce consistent spacing and form.
Produce Rollable Fiber Ribbons With Precision Bonding
A 16-spool pay-off feeds the machine, while guide rollers with U-shaped grooves keep individual strands organized. Hard-anodized roller surfaces support steady contact during processing. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
The stated construction speed reaches 600 m/min. The listed reel dimensions, Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm, correspond to pay-off reel options holding 25.2 km or 50.4 km of fiber. T-type and fiber-optic take-up reels are also offered for this system. Compare reel capacity with your production requirements and expected changeover time.
Review The Production Line’s Key Equipment And Controls
Consistent output depends on aligning tension, resin placement, and UV exposure. Operators can use the system to align settings with the needs of their cable design and fiber ribbon.
Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing
Every pay-off unit uses electro-pneumatic adjustment. Dispensers can run independently or in linked groups, with adhesive-dot spacing and counts configured through the interface.
Before UV-LED post-curing, three pre-curing ovens work with the mold groups. Ask the supplier to confirm resin compatibility and the relevant operating conditions.
The Siemens PLC and touchscreen display lamp current and oven temperature, generate alarms, and support preset lengths. Check the necessary cabinet and power supply arrangements before purchasing.
| Process Stage | Technical Specification | Buyer check |
| Tension of fibers | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Align settings with cable requirements |
| Resin dispensing | Independent or linked units; set adhesive-dot spacing and count | Review interface settings |
| Curing With UV-LED | Three 800 W pre-curing ovens; one 6 kW post-curing oven; 395 nm ± 3 nm; at least 85% cure under stable, high-speed conditions | Verify compatibility with the resin |
| Monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Prepare Line Configuration, Installation, And Operating Conditions
Before the machine is delivered, prepare a dedicated operating area. The optical fibre system requires an enclosed, clean, dry, and draft-free environment. Keep the temperature from 15°C to 25°C, with humidity at or below 85%. These conditions help safeguard fiber equipment and maintain precision during operation.
With your facilities team, check site utilities, available electrical capacity, cabinet space, and cable design. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are required for the system. A three-phase, five-wire electrical supply rated 380 V ±10% is specified.
- Reserve room for the cabinet, components, resin, and access to service parts. Verify temperature settings and tension control before startup.
- Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be supported by the take-up unit.
- Account for the main power feed-in cable when planning the site. Connection cables and cable trays are not included with the equipment.
Before ordering, confirm the supply scope, reel types, and installation requirements. Reviewing these items may reduce setup time and avoid subsequent delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system begin operating more smoothly.
Obtain Pricing For A Ribbon Production Solution Matched To Your Needs
At its stated speed of 600 m/min, this line can be considered by manufacturers producing rollable 12- or 16-fiber formats. When requesting a quote, share your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Check the proposed system for its 16-spool pay-off, UV-LED curing setup, take-up capacity, and available options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
The documentation list covers operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. These documents can help assess setup time and ongoing service needs.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Verify the supply scope and replacement parts before purchase.
